HTR5034E is designed as HGU (Home Gateway Unit) in deferent FTTH solutions,The carrier-class FTTH application provides data service
HTR5034E is based on mature and stable, cost-effective EPON
HTR5034E adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON 0
HUR5034E is designed by Realtek chipset 9601D.
| Technical item | Details |
|
PON Interface |
1 GEPON port(EPON PX20)
Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| Wavelength | TX: 1310nm, RX: 1490nm |

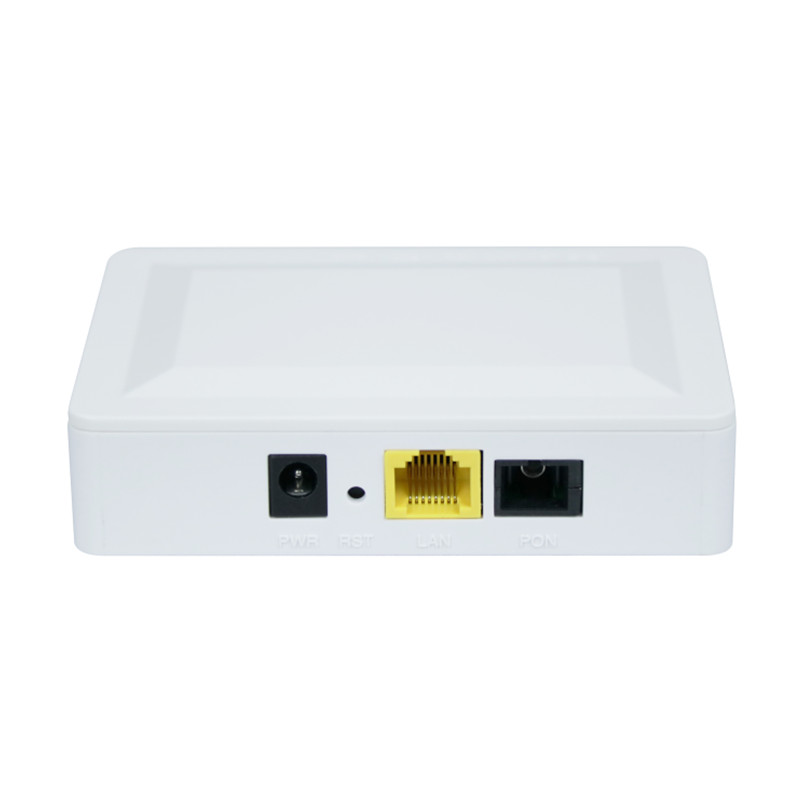

| Optical Interface | SC/UPC Connector |
| LAN Interface | 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45
connector |
| LED | 4 LED, For Status of PWR、LOS、PON、LINK/ACT |
| Push-Button | 2,For Function of Poweron/off,Reset |
| Operating Condition | Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing) |
| Storing Condition | Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing) |
| Power Supply | DC 12V/0.5A |
| Power Consumption | <3W |
| Dimension | 120mmx78mmx30mm(L×W×H) |
| Net Weight | 0.13Kg |
