HG8310M Compatible Huawei EchoLife – small size ONU terminal

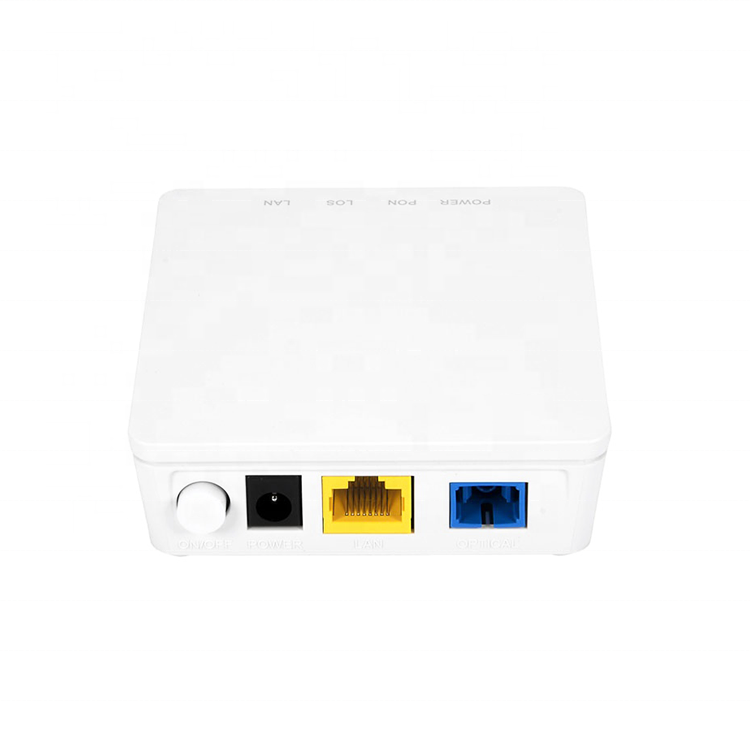

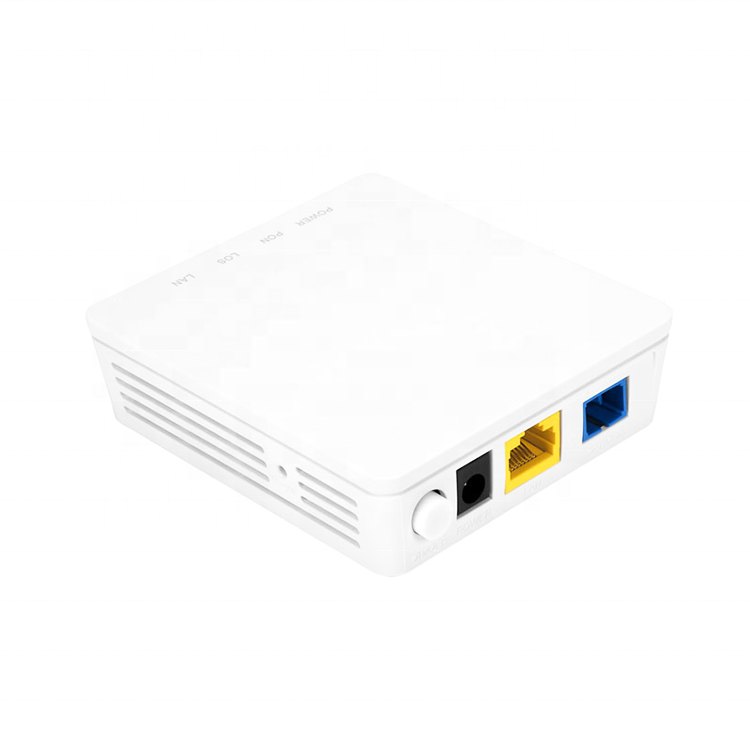

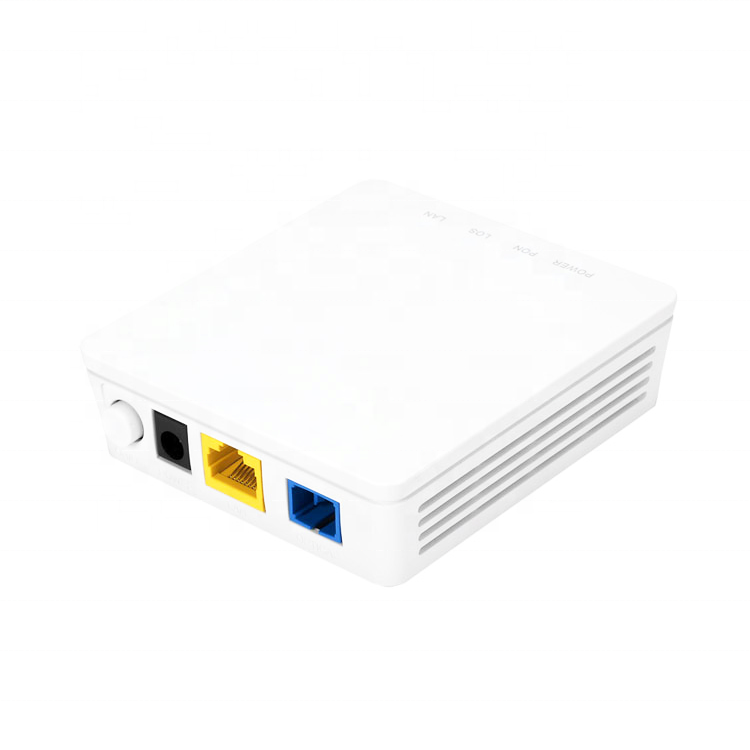

HG8310M is an ONU terminal of the renowned Huawei company used in FTTx networks. Its small dimensions while maintaining high efficiency make it a perfect client device. It has one Ethernet port in Gigabit standard and a blue GEPON port with SC/UPC connector. Small size makes it easy to install the device and set up at the customer’s site. The terminal offers high switching efficiency and very high throughput, meeting even the highest requirements. Equipped with 12 V 0.5 A power supply.
-
SPECIFICATION
Features / filters Number of LAN ports 1x 10/100/1000BaseTX (RJ45) PON standard GPON Wireless network standards None USB port None VoIP ports None Technical specification HG8310M
Interfaces GPON 1 port class C+
Sensitive reception: ~-27 dBm
Flexible mapping between the GEM and TCONT ports
Wavelength: US 1310 nm, DS 1490 nm
GPON: compatible with SN authentication or password as defined in G.984.3
Two-way FEC
SR-DBA and NSR-DBAEthernet 10/100/1000BASE-T (RJ45)
Teaching MAC addresses
Transparent transmission of IPv6 packets on layer 2 level

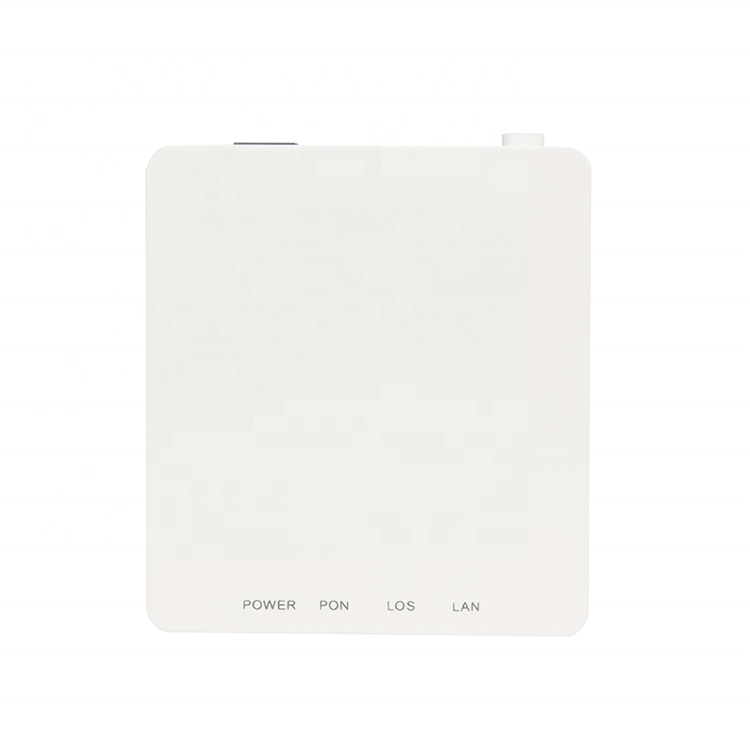

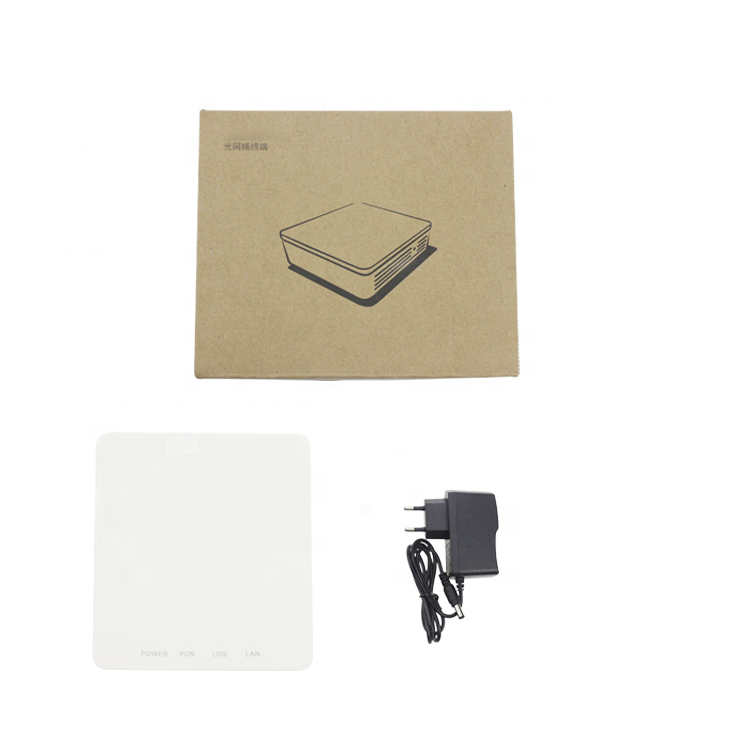

QinQ VLANConnection type SC/UPC Physical characteristics Dimensions 82 x 90 x 27 mm Weight < 500 g Permissible operating temperature 0° to 40° C Permissible air humidity 5%-95% RH, non-condensing Power input 100 – 240 V AC, 50 – 60 Hz System power supply 11 – 14 V DC, 0.5 A Average power consumption 2 W Maximum power consumption 3 W LEDs POWER/ PON/ FATE/ LAN Set composition HG8310M
12 V, 0.5 A DC power supply
