Shinho X-18 Ribbon Fiber Thermal Stripper Hot Jacket Fiber Stripper Remover Fiber Optic Tool

Thermal Stripper for Ribbon Fiber X 18

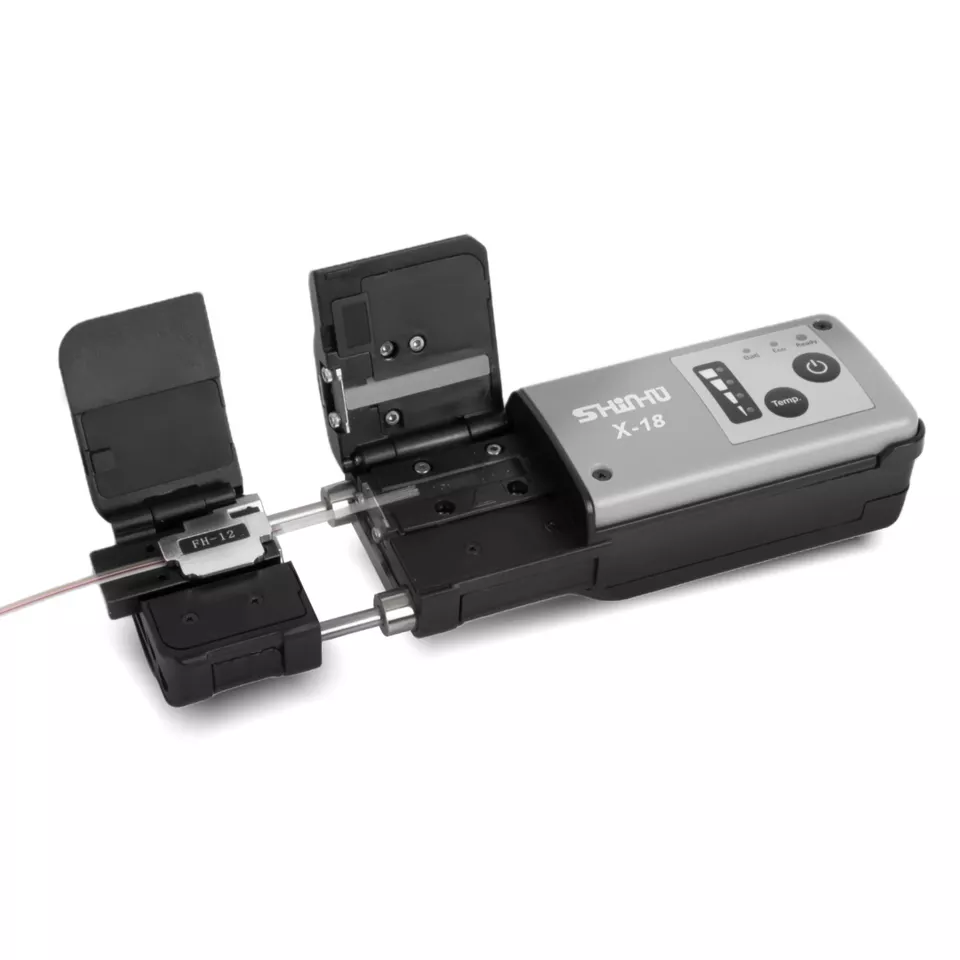

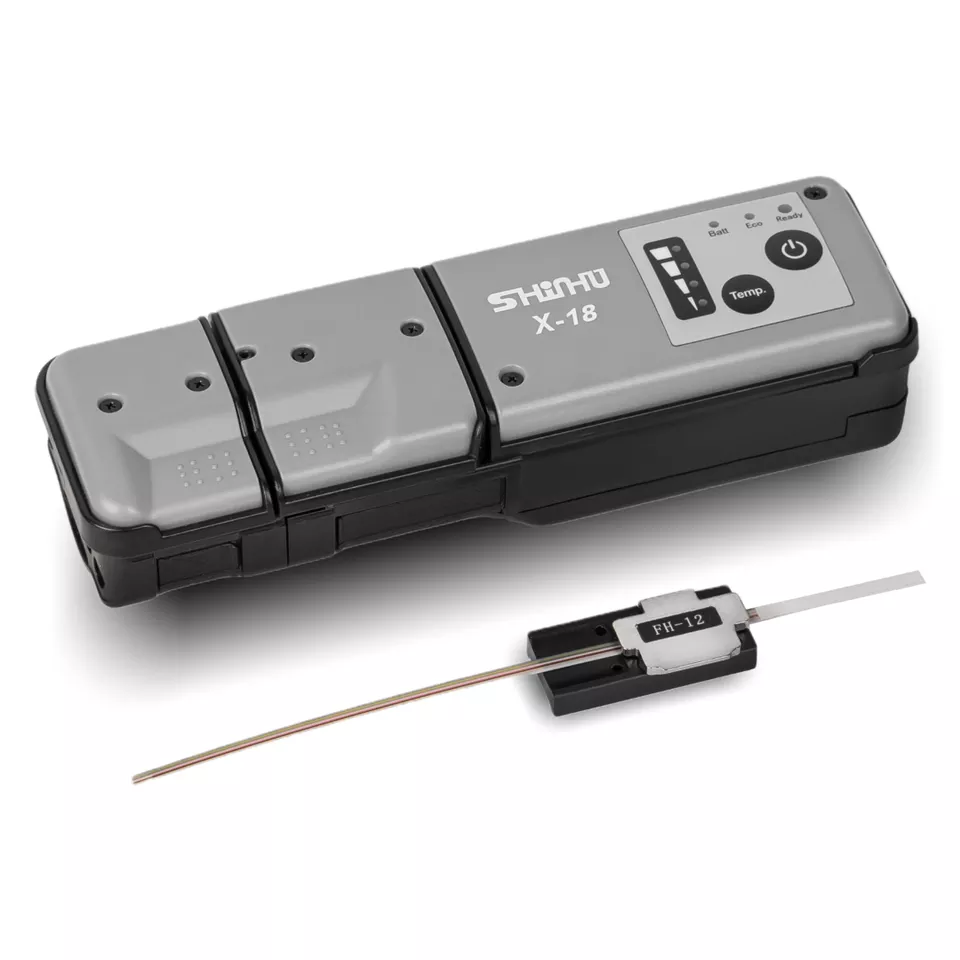

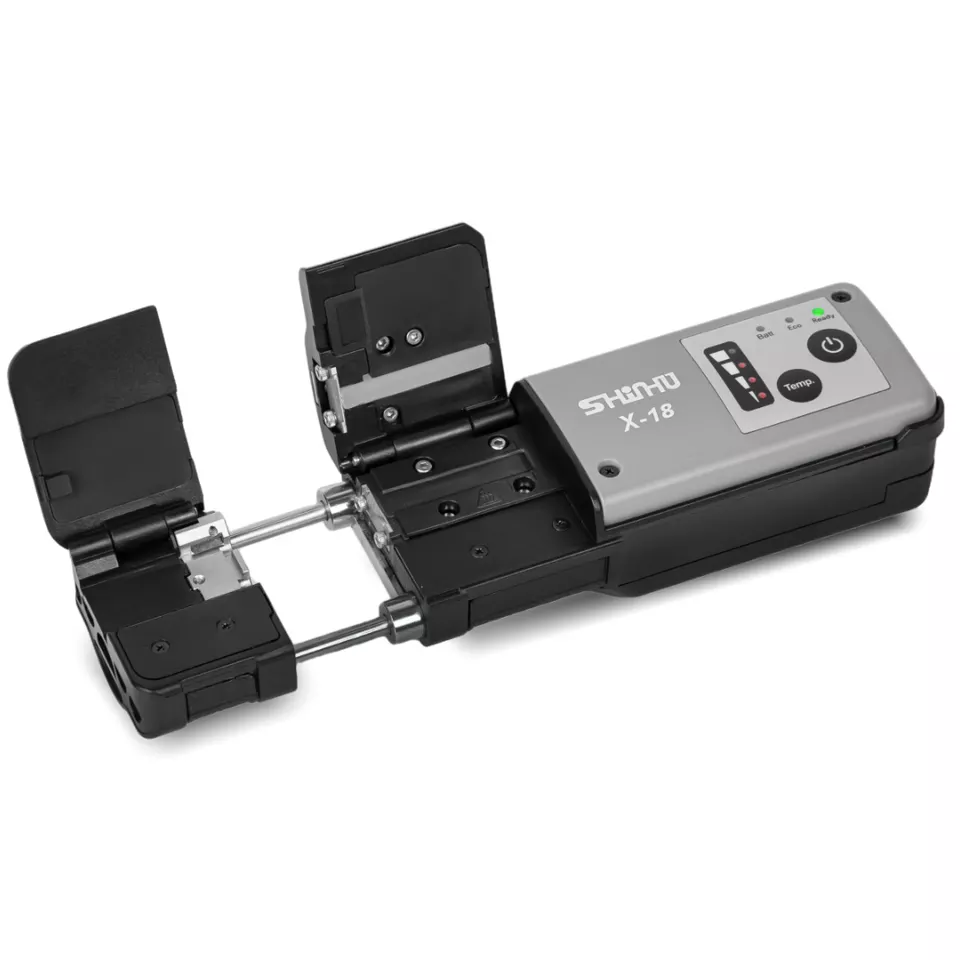

Shinho X-18 Thermal Stripper is a newly developed hand-held thermal stripper, specially designed for nondestructive thermal stripping of the jacket of single fiber and ribbon cable up to 12 fibers. A good and reliable tool for ribbon fiber splicing work.

Features
* Apply to single and ribbon (up to 12 cores) fibers
* 10 seconds fast heating, 4 levels temperature optional
* Normal and Power saving modes Optional
* Bigger battery capacity, 2000mAh
* Small size and light weight, convenient to carry
* Rugged and durable for any tough environment
* Easy to operate and maintain, near zero failure.
* Reach CE, ROHS international standards

Specification

Fiber material	Silica glass
Coating material	UV curable resin
Coating diameter	Single core: 0.25~0.4mm; 2~12 ribbon fiber: 0.3~0.4mm
Cladding diameter	125µm
Coating stripping length	Max 30mm
Fiber types	Single fiber, ribbon fiber
Fiber holder type	FH-2,FH-4,FH-6,FH-8,FH-10,FH-12,FH-250,FH-900,FH-U (for 250/900µm fibers)
Heating mode	Normal mode, power saving mode
Temperature setting	Default: 80°C. Normal mode: 60℃, 80℃ 100℃, 120℃.
Typical heating time	Normal mode: 10 seconds for first stripping Power saving mode: 12~13 secs
Battery capacity	2000 mAh Li-battery. Full charge time: 3 hours. Support approx. 600 cycles continuous stripping once fully charged at default temperature.
Power supply	AC adapter, input: AC100-240V(50/60HZ), output: DC12V-1A
Operation environment	Altitude: 0-5000m, Relative humidity: 0-95%, Temperature: 0℃ ~ +40 ℃, Wind speed: 15m/s maximum
Dimension/Weight	155mm (L)×50mm (W)×40mm (H) /NW:267g（including battery）
