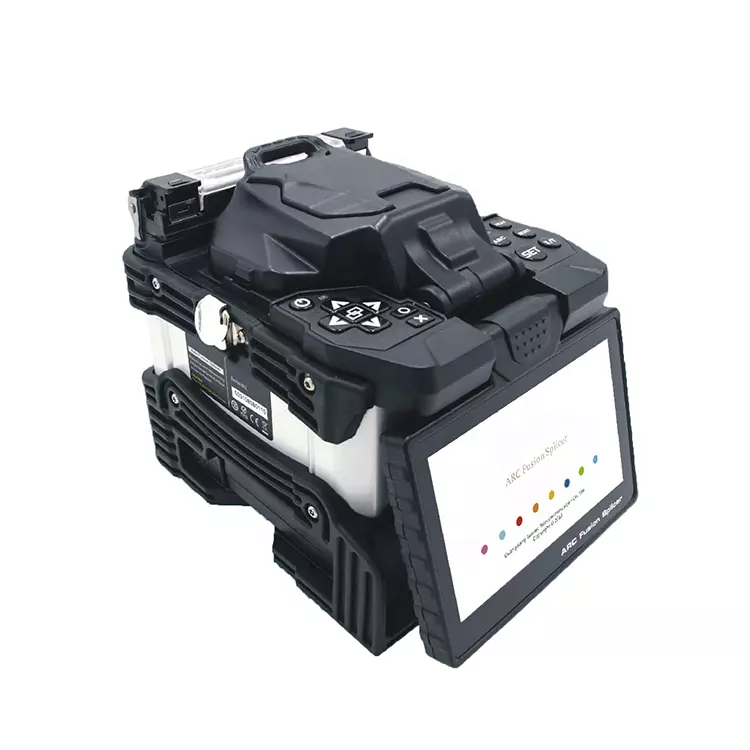

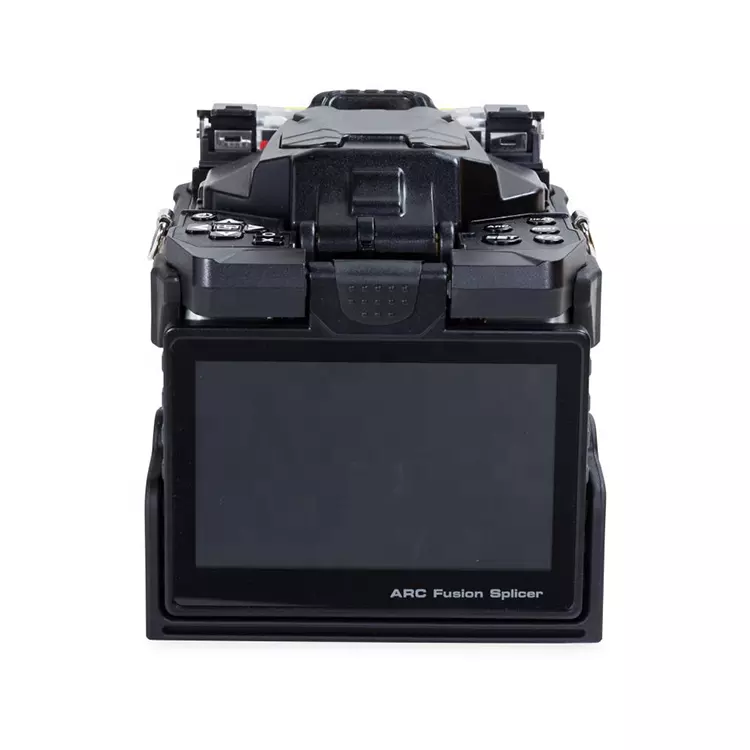

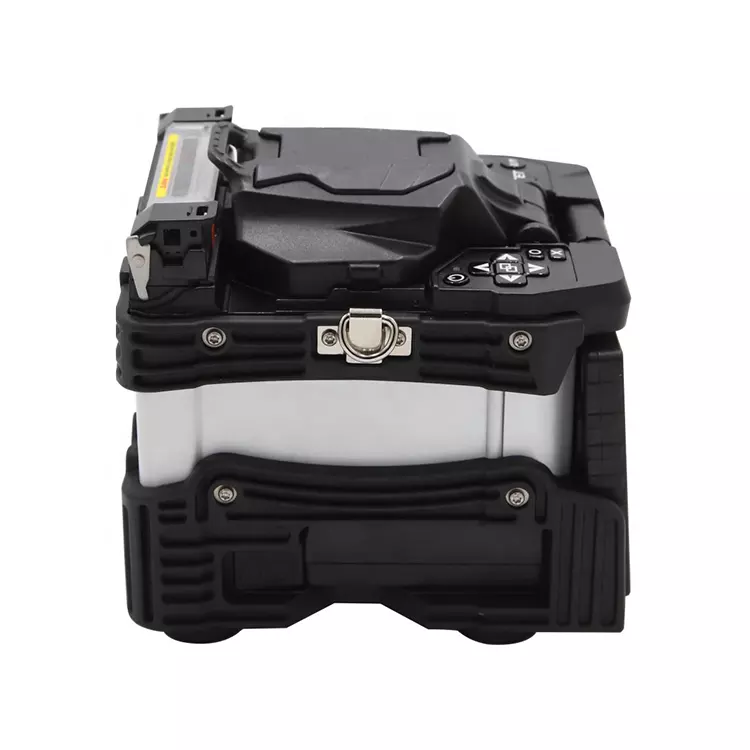

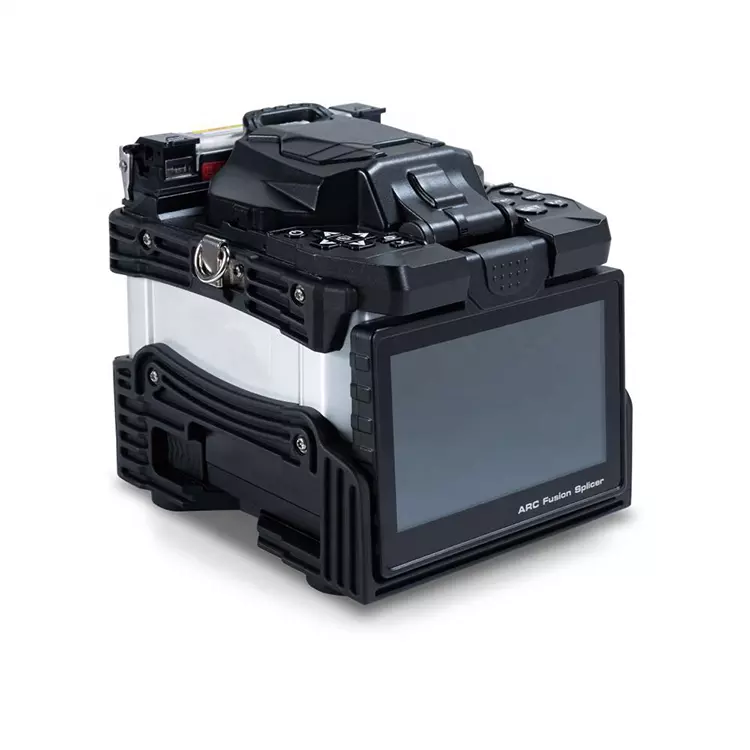

High Precise 6 Motors Backbone Fusion Splicer FST-V9 Ftth Optical Fiber Splicing Machine

OEM & ODM Accepted

Technical Data

ITEM	Technical Parameters
Number of Fiber	Single
Appicable Fibers	SM(ITU-T G. 652&G.657),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G655)
Compatible Fiber/Cable	0.25-3.0mm/Indoor Cable
Cleaved Length	Diameter: 0.125-1mm/Cleave Length:8-16mm
Splicing Mode	Pre-set 41 splicing modes, max 100 modes
Heating Mode	Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes
Typical Splice Loss	0.01-0.05dB
Return Loss	≥60dB
Lighting	3 high-power LED white light
Splicing Time	6-12s
Estimated Splice Loss	Available
Heating Sleeve Length	20-60mm
Heating Time	Quick heating time: 13s, typical heating time: ≥20s
Results Storage	2000 latest records
Tension Test	1.5 – 2.0N
Display	90° bi-directional view, 5′ high resolution display with touch screen
Fiber View & Magnification	X, Y, XY, X/Y: 500X Magnification
Power Supply	AC Input 100 – 240V, DC Input 12- 15V

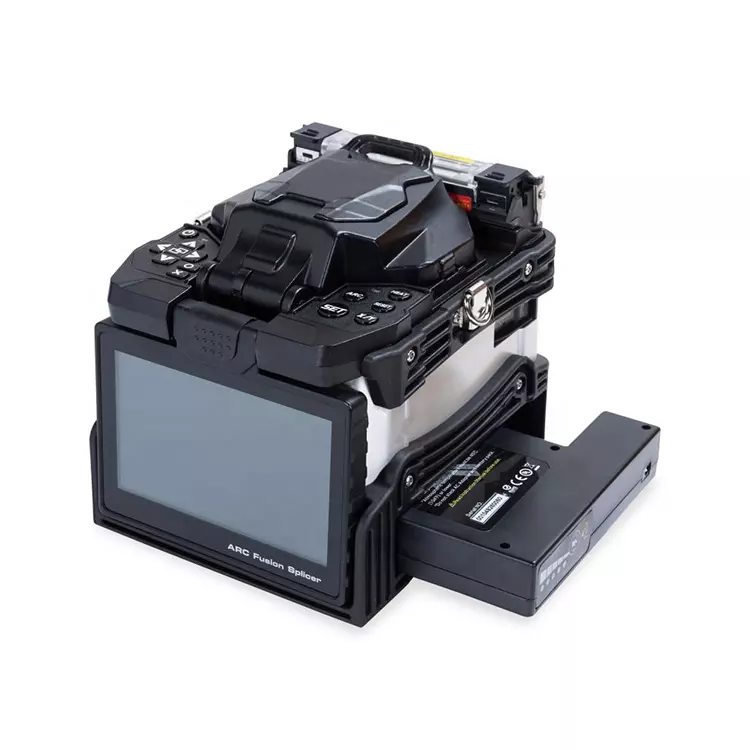

No. of Splice/Heating with Battery	5200mAh Battery Capacity, Typical 280 times (Splice + Heat)
Operating Methods	Button/Touch Screen
Automatic Calibration	Automatic ARC calibration by air pressure and temperature
Electrode Life	3000 arcs
Terminal	Mini USB 2.0
Weight	2.3 KG (with battery)
Dimension	140W165L160H
Operating Condition	Operating Altitude 0-5000m above sea level, 0-95% relative humidity,-10~50℃, max wind 15m/s
Storage Condition	Relative humidity 0-95%, -40~80°C, battery storage: -20~30°C long-term
